In die casting, uniform wall thickness isn’t just a design preference—it’s a fundamental requirement for quality, efficiency, and long-term performance.
From cooling behavior to dimensional accuracy, wall uniformity influences nearly every aspect of part production and function.
Ignoring this detail can lead to costly defects, inconsistent performance, and even product failure.
So why exactly does uniform thickness matter so much?
Because it determines how well molten metal flows, cools, and solidifies—directly affecting the strength, shape, and reliability of the final part.
Understanding this concept allows manufacturers and engineers to reduce defects, save costs, and deliver more consistent results.
Let’s take a closer look at how uniform wall thickness improves die casting outcomes—across material flow, defect prevention, mechanical strength, and production efficiency.
-
Table Of Contents
-
1. Why Is Uniform Wall Thickness So Crucial in Die Casting?
-
2. The Foundation of Uniformity: Flow, Cooling, and Solidification
-
3. Reducing Common Defects Through Consistent Wall Design
-
4. Strength and Accuracy: Meeting Tight Tolerances and Performance Requirements
-
5. Tooling, Cycle Time, and Long-Term Efficiency
-
6. What Happens When Wall Thickness Isn’t Uniform?
-
7. Designing for Uniformity: Practical Guidelines
-
8. Summary

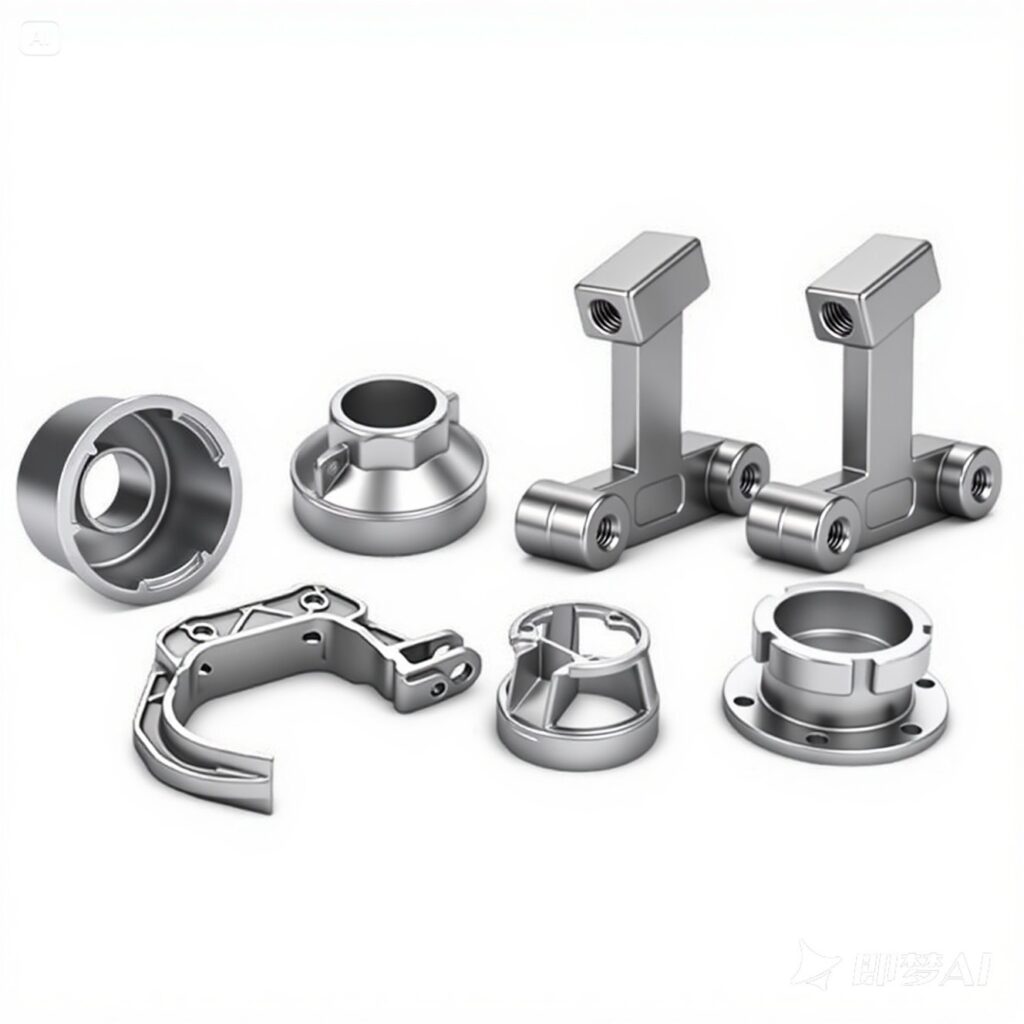

The Foundation of Uniformity: Flow, Cooling, and Solidification
At the heart of the die casting process lies a complex sequence of molten metal injection, flow, and solidification.
The geometry of a part—and more specifically, the uniformity of its wall thickness—plays a critical role in how smoothly this process unfolds.
When wall thickness varies across a casting:
• Thicker sections cool slower, trapping heat and creating shrinkage voids.
• Thinner sections cool rapidly, risking premature solidification and flow blockages.
• This leads to turbulent flow, gas entrapment, and unpredictable internal stress distribution.
On the other hand, maintaining a consistent wall thickness:
• Promotes smooth, even metal flow across the mold cavity.
• Ensures uniform cooling, minimizing thermal gradients.
• Reduces internal stresses, warping, and solidification-related defects like porosity.
By preventing turbulence and uneven shrinkage, manufacturers gain better control over casting quality—delivering parts that are not only dimensionally accurate but also more structurally sound.
Reducing Common Defects Through Consistent Wall Design
One of the most immediate benefits of uniform wall thickness is a substantial reduction in casting defects. Variations in thickness often trigger the most common and costly problems in die casting, such as:
• Shrinkage porosity: When thicker sections solidify last, they can pull molten metal from adjacent areas, leaving internal voids.
• Warping and distortion: Uneven cooling rates cause internal stresses that bend or twist the part.
• Cold shuts and flow lines: Non-uniform thickness disrupts the metal’s flow path, trapping gas or causing incomplete fusion.
A uniform wall structure ensures that molten metal solidifies at a consistent rate throughout the mold, reducing or eliminating these issues.
This is especially important for critical applications in automotive, aerospace, and consumer electronics, where even minor surface flaws or dimensional inconsistencies can result in rejected parts or mechanical failure.

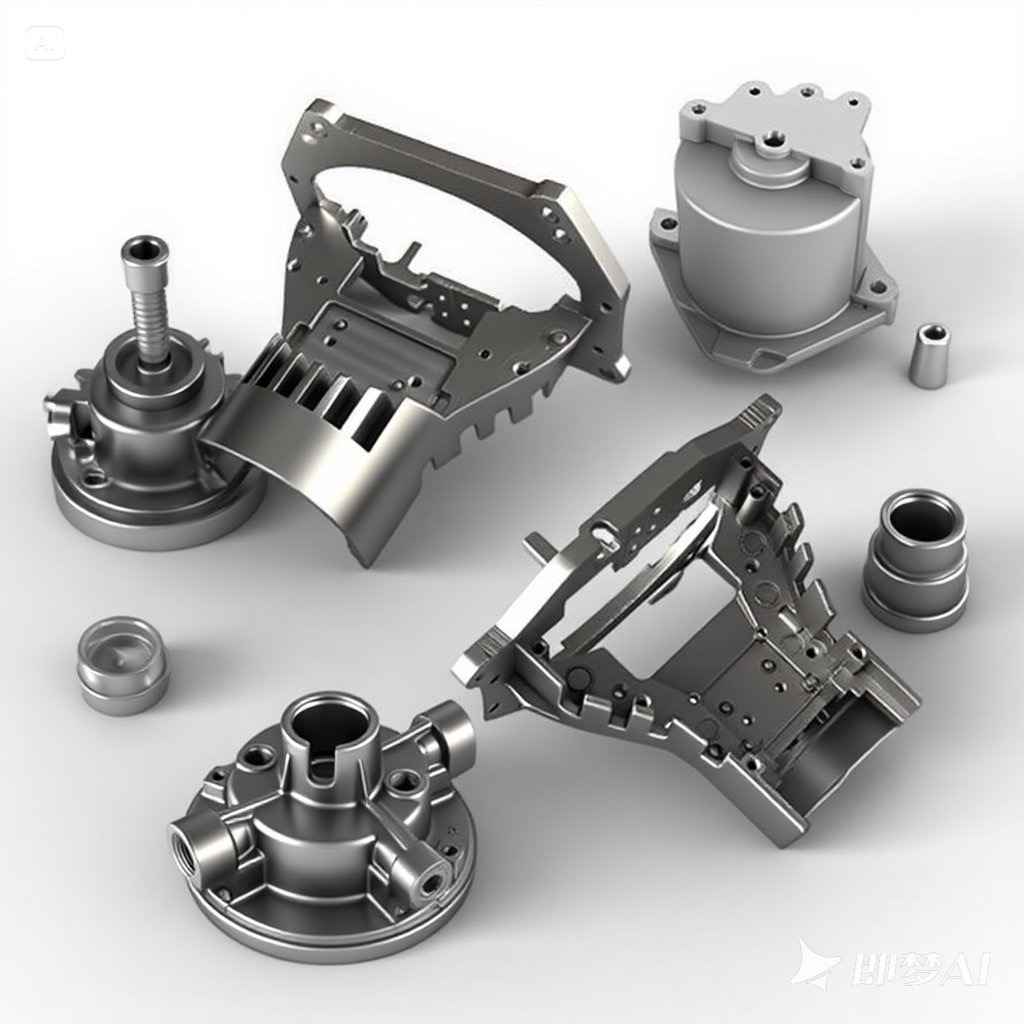

Strength and Accuracy: Meeting Tight Tolerances and Performance Requirements
Uniform wall thickness isn’t just about avoiding flaws—it’s also key to meeting engineering and functional expectations.
Die-cast parts are often used in precision assemblies where tolerances are tight and mechanical loads are high.
Thicker sections can act as stress concentrators, introducing weak points prone to cracking under load.
Inconsistent thickness can also cause differential shrinkage, leading to dimensional inaccuracies that compromise fit and function.
With consistent thickness, you get:
• Even stress distribution across the part, improving mechanical strength and fatigue life.
• Tighter dimensional control, reducing the need for costly post-processing like machining or grinding.
• Repeatability in mass production—each part behaves and performs like the last.
This is especially critical in high-performance applications such as transmission housings, engine components, and structural brackets.
Tooling, Cycle Time, and Long-Term Efficiency
Uniform wall thickness doesn’t just benefit the final part—it makes the entire production process smoother and more cost-effective.
In tooling design, wall uniformity leads to more predictable behavior in terms of:
• Mold filling: Reducing the complexity of gating systems and metal flow channels.
• Cooling design: Allowing for evenly placed cooling lines, avoiding hot spots that wear down the die.
• Tool durability: Consistent cooling and reduced thermal cycling prolong the lifespan of expensive molds.
Production also benefits through:
• Shorter cycle times: Uniform parts cool and solidify evenly, allowing for quicker mold opening and part ejection.
• Lower scrap rates: Fewer defects mean fewer rejections, increasing overall yield.
• Reduced labor and finishing costs: With more consistent parts, there’s less need for manual correction or surface finishing.
In short, a uniform design can translate directly into higher throughput and better ROI for manufacturers.
What Happens When Wall Thickness Isn’t Uniform?
To fully appreciate the value of uniform thickness, it helps to look at the risks of getting it wrong. Inconsistent wall thickness often results in:
• Higher reject rates due to porosity, warping, or surface defects.
• Tooling issues, including increased die wear and more frequent maintenance.
• Increased production costs from additional post-processing, slower cycle times, and rework.
• Reduced customer satisfaction, especially when parts fail during service or don’t meet dimensional specifications.
While these problems may seem minor during design, they can snowball into major cost drivers during production.
That’s why experienced die casting engineers emphasize wall uniformity from the earliest design stages.

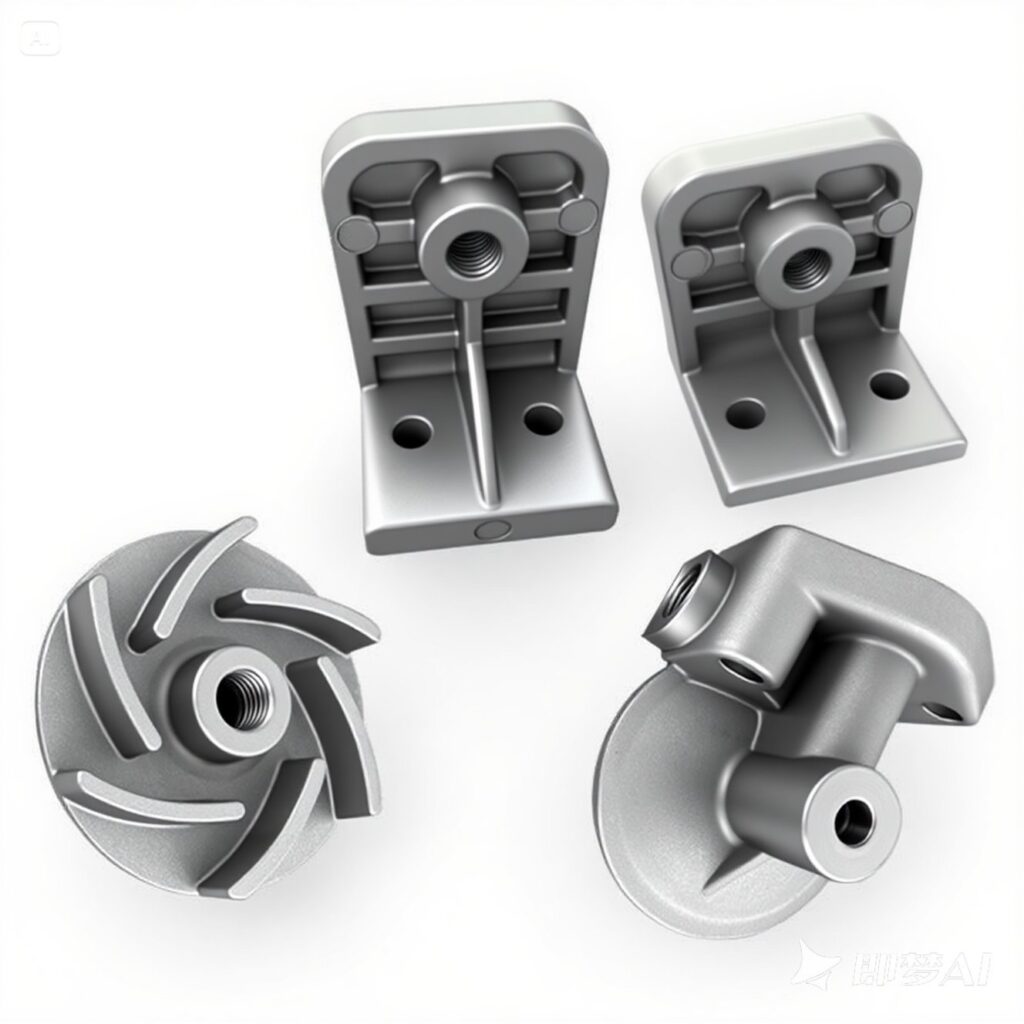

Designing for Uniformity: Practical Guidelines
Ensuring uniform wall thickness starts with good design habits. Here are a few proven strategies:
• Keep walls as consistent as possible throughout the part.
• Use reinforcing ribs instead of thick walls to add strength without excess bulk.
• Transition gradually between different sections to avoid abrupt thickness changes.
• Use simulation software to model flow and cooling before finalizing designs.
• Collaborate early with tooling and casting experts to optimize manufacturability.
By embedding these principles into the design phase, manufacturers can avoid costly changes later in production—and create parts that perform as expected right out of the mold.
Conclusion
In die casting, uniform wall thickness isn’t just a technical detail—it’s a design philosophy.
From improved material flow to better structural integrity and cost control, wall uniformity brings tangible benefits at every stage of manufacturing.
It reduces defects, improves strength, simplifies tooling, and ultimately enables manufacturers to deliver consistent, high-quality parts that perform reliably in the real world.
For manufacturers aiming to stay competitive, this principle should be a cornerstone of die casting design.
Whether you’re developing parts for vehicles, machines, or electronics, please remember: uniformity isn’t optional—it’s essential.
