Electronic component manufacturers are under increasing pressure to deliver high-precision, high-volume parts while keeping costs and lead times under control.
Traditional metal-forming methods often struggle to meet these modern demands due to limitations in speed, consistency, and waste reduction.
Progressive die stamping offers a game-changing solution.
By integrating multiple forming operations into a single, automated process, it drastically improves production speed, accuracy, and cost-efficiency.
For manufacturers seeking to scale production without compromising quality, progressive die stamping is the answer.
This article explores how progressive die stamping works, why it outperforms conventional methods, and how it can transform your electronics manufacturing line—from saving costs to enabling next-generation automation.
-
Table Of Contents
-
1. How Can Progressive Die Stamping Solve Efficiency Challenges in Electronic Component Manufacturing?
-
2. What Is Progressive Die Stamping and How Does It Work?
-
3. Why Is Progressive Die Stamping Perfect for Electronics Manufacturing?
-
4. What Makes Progressive Die Stamping More Efficient Than Traditional Methods?
-
5. How Does Progressive Die Stamping Compare to Other Methods?
-
6. How Does Progressive Die Stamping Reduce Costs?
-
7. What Role Does Automation Play in Progressive Die Stamping?
-
8. How to Avoid Common Failures in Progressive Die Stamping Projects?
-
9. Summary
What Is Progressive Die Stamping and How Does It Work?

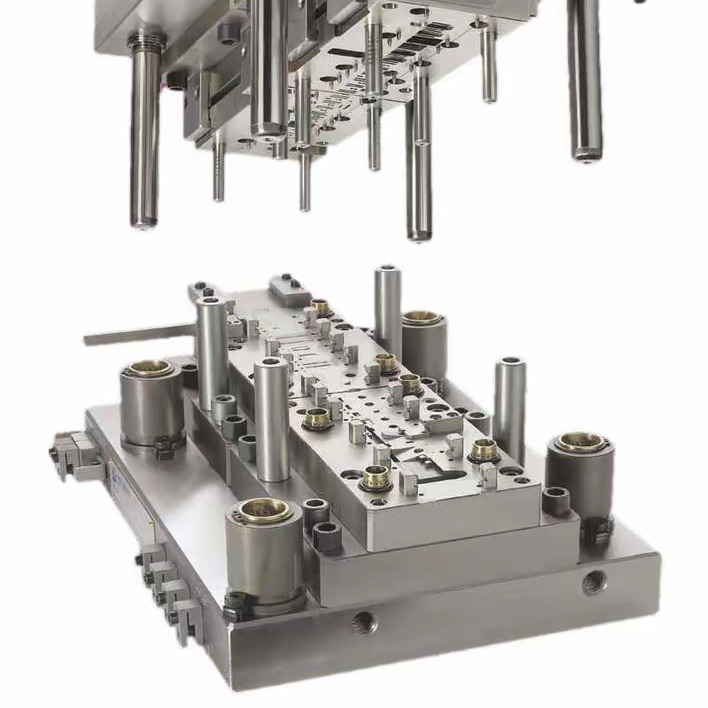

Progressive die stamping is a metalworking process where a continuous strip of sheet metal is fed through a press containing multiple die stations.
Each station performs a specific operation, and by the time the strip exits the press, a fully formed part is complete.
Step-by-step breakdown:
1. Material Feed – Coil-fed sheet metal is automatically advanced through the stamping die.
2. Die Progression – Each station forms a feature: punching holes, adding bends, or trimming edges.
3. Part Ejection – The finished part is cut and separated for collection or assembly.
This method allows for complex geometries and multiple features to be created in a single run, making it ideal for small, precise, and intricate electronic components.
Why Is Progressive Die Stamping Perfect for Electronics Manufacturing?
Electronic components require accuracy, uniformity, and high-volume production.
Progressive die stamping meets all these demands while reducing costs.
Key benefits for electronics manufacturing:
• Micron-Level Precision – Tolerances as tight as ±0.001 inches.
• High Repeatability – Every part matches the previous one, critical for circuitry and connectors.
• Integrated Forming – One process replaces multiple steps, improving turnaround time.
• Scalability – Ideal for both prototyping and mass production of connectors, shielding, heat sinks, and frames.
For engineers and buyers sourcing high-spec metal components, this process minimizes delays and maximizes reliability.
What Makes Progressive Die Stamping More Efficient Than Traditional Methods?
Progressive die stamping outperforms traditional manufacturing by combining multiple metal-forming operations—cutting, bending, punching, and shaping—into one seamless, automated workflow.
As a coil of sheet metal advances through a series of precisely engineered die stations, each step is performed in a synchronized manner, delivering finished parts with minimal handling and time.
Here’s how it boosts efficiency:
1. Reduces Labor and Handling – Automated progression eliminates the need for workers to transfer parts between stations, slashing labor costs and human error.
2. Maximizes Speed – Multiple operations are executed in parallel, enabling production rates of hundreds of parts per minute.
3. Minimizes Waste – Optimized material layouts ensure near-complete usage of raw materials.
4. Delivers Consistent Precision – Tight tolerances and repeatability ensure every part meets exact design specifications, which is vital in electronics.
In industries like consumer electronics, automotive control systems, and telecommunications, where component accuracy and speed are non-negotiable, progressive die stamping provides the reliability manufacturers depend on.
How Does Progressive Die Stamping Compare to Other Methods?
When evaluating metal-forming processes, it’s essential to understand the key differences between progressive stamping and alternatives like transfer press stamping or fine blanking.
Progressive vs. Transfer Press Stamping
Feature | Progressive Die Stamping | Transfer Press Stamping |
Best for | Small, complex parts | Large, heavy components |
Speed | Very high | Moderate |
Automation | Fully automated | Partially automated |
Material Handling | Continuous strip | Individual blanks |
Progressive stamping is superior for small, high-volume components like electronic terminals, while transfer press stamping is better suited to structural parts.
Progressive vs. Fine Blanking
Feature | Progressive Stamping | Fine Blanking |
Best for | High volume, cost efficiency | Ultra-precise edge quality |
Operations | Multiple forming steps | One precise punch |
Edge Finish | Good | Excellent |
Complexity | High | Low-to-moderate |
Unless you require ultra-smooth edges or extremely thick material forming, progressive stamping is the more scalable and cost-effective choice.
How Does Progressive Die Stamping Reduce Costs?
Manufacturers increasingly prioritize efficiency—not just in speed, but in material use, labor, and total production costs.
Progressive die stamping delivers measurable savings in multiple areas. Here’s how it cuts costs:
1. Material Utilization – Optimized die layouts reduce scrap by up to 30%.
2. Fewer Operators Needed – Full automation reduces labor overhead.
3. Minimal Post-Processing – Parts are often ready for use directly from the press.
4. Shorter Lead Times – Faster cycle times lead to quicker deliveries and better cash flow.
For procurement teams and operations managers, these benefits translate directly into reduced unit costs and stronger production ROI.
What Role Does Automation Play in Progressive Die Stamping?
Modern progressive die stamping systems leverage smart automation to improve speed, quality, and uptime.
Automation features include:
• Servo-Controlled Feeds – Ensure accurate, high-speed metal strip positioning.
• Sensor-Driven Error Detection – Instantly catch misfeeds or tooling wear.
• In-Line Quality Control – Cameras and sensors perform real-time inspection.
• IoT Connectivity – Monitor machine health, productivity, and maintenance remotely.
These advancements empower manufacturers to scale without increasing risk or complexity.
How to Avoid Common Failures in Progressive Die Stamping Projects?
Even with its many benefits, poor planning or communication can lead to failures in progressive die stamping projects.
Here’s how to prevent them:
• Collaborate Early with Designers – Ensure your part is optimized for stamping, not just function.
• Request Tooling Simulations – This helps spot weak points in form, fit, or tolerance before production.
• Plan for Tool Maintenance – Progressive dies are durable but require periodic upkeep to maintain quality.
• Specify Tight but Realistic Tolerances – Overly strict tolerances can drive up costs unnecessarily.
By taking a proactive role, engineers and buyers can ensure that stamping projects stay on time, on budget, and to spec.
Conclusion:

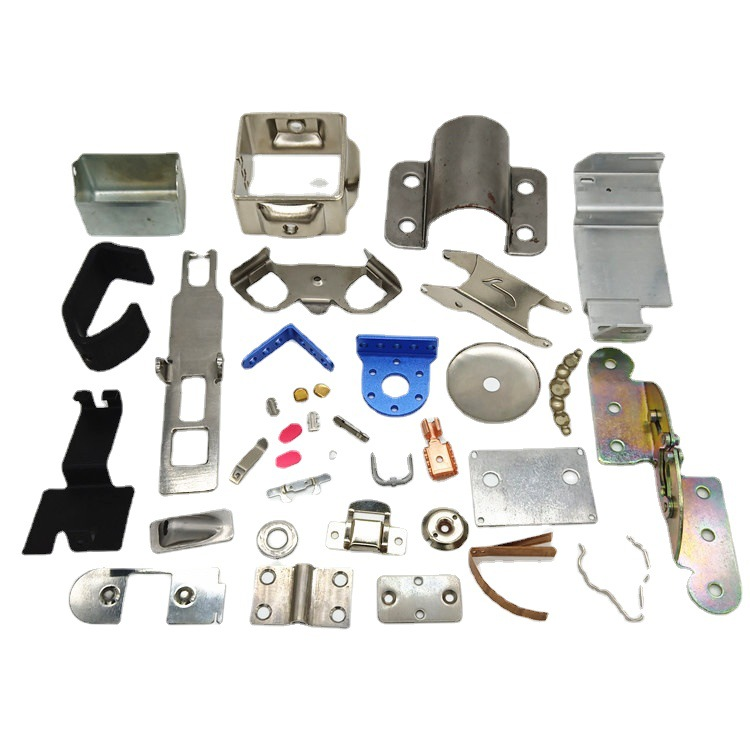

If your business depends on producing small, precise metal components at scale—think electrical terminals, shielding enclosures, or sensor frames—then progressive die stamping is almost certainly the right choice.
It delivers high-volume production at high speed, ensures precision, consistency, and low material waste, cuts down on labor, tooling changes, and lead times.
As electronic devices become smaller and more complex, the manufacturing processes behind them must evolve.
Progressive die stamping isn’t just a good option—it’s a competitive necessity.
Ready to streamline your electronic component production?
Reach out to an experienced stamping provider and see how progressive die stamping can transform your workflow.
