How Does Sheet Metal Fabrication Work: A Detailed Look at its Processes

In the world of manufacturing, sheet metal fabrication is a fundamental process used to create various structures and products. Understanding this process is crucial to making informed decisions.

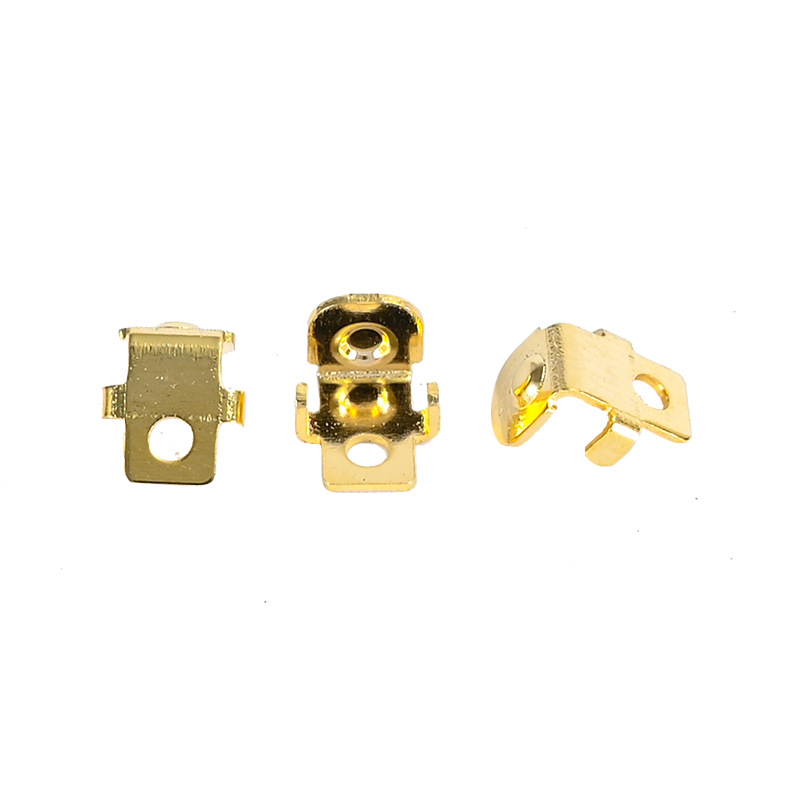

Golden plated metal stamping parts

Sheet metal fabrication is the process of turning flat sheets of steel or aluminum into metal structures or products by cutting, punching, folding, and assembling.

This versatile method allows metal to be shaped into nearly any form, making it essential in numerous industries.

Now, let’s dive deeper into the intricacies of sheet metal fabrication, exploring its processes and design tips to help you navigate this essential aspect of manufacturing.

Silver surface, galvanized sheet material, metal fabrication covers

What is the Process of Sheet Metal Fabrication?

The sheet metal fabrication process involves manipulating or altering sheet metal materials into different geometries by cutting, forming, or joining them.

Sheet metal fabrication consists of a series of steps and techniques to achieve the desired shape and functionality. Here’s a detailed look at each stage:

1. Design and Engineering: The process begins with a detailed design and engineering phase. Engineers use computer-aided design (CAD) software to create precise drawings and models of the final product.This step ensures that every design aspect, including dimensions, tolerances, and material specifications, is accounted for.

2. Material Selection: Choosing a suitable material is crucial for the success of the fabrication process. Common materials include steel, aluminum, brass, and copper, each offering unique properties and benefits.The choice of material depends on factors such as strength, weight, corrosion resistance, and cost.

3. Cutting: Cutting is the first step in transforming flat metal sheets into specific shapes. Various cutting methods are used, including:

Shearing: A cutting process that uses shear force to cut through the metal.

Laser Cutting: A precise method that uses a high-powered laser to cut the metal.

Plasma Cutting: Uses a plasma torch to cut through electrically conductive materials.

Water Jet Cutting: Uses a high-pressure stream of water mixed with abrasive materials to cut the metal.

Dark grey color, stainless steel material, metal stamping parts

4. Forming: After cutting, the metal sheets are formed into the desired shapes using various forming techniques, such as:

Bending: Metal sheets are bent using press brakes or other bending machines to achieve the required angles and shapes.
Rolling: The metal is passed through a series of rollers to create cylindrical or curved shapes.
Stamping: A stamping press is used to form shapes by pressing a die into the metal.



5. Joining: The formed metal parts are then joined together using various techniques, including:

Welding: A process that uses heat to melt and fuse metal parts.
Riveting: Metal fasteners called rivets are used to join metal sheets together.
Adhesive Bonding: Specialized adhesives are used to bond metal parts together.



6. Finishing: The final step in the fabrication process is finishing, which includes:

Surface Treatment: Processes such as painting, powder coating, and galvanizing are used to protect the metal from corrosion and enhance its appearance.
Deburring: Removing sharp edges and burrs from the metal to ensure safety and improve the finish.

Silver plating, sheet metal parts, terminal

What are Advantages of Sheet Metal Fabrication?

Sheet metal fabrication offers several benefits, making it a preferred choice for many manufacturing applications. Here are some of the key advantages:

1. Durability: Metal structures are strong and long-lasting. They can withstand harsh environments, heavy loads, and high temperatures, making them suitable for various applications.



2. Versatility: Metal can be shaped into nearly any form, allowing for the creation of complex and intricate designs. This versatility makes sheet metal fabrication ideal for producing various products, from simple brackets to sophisticated enclosures.



3. Cost-Effective: Efficient processes reduce material waste and production time, resulting in cost savings. Sheet metal fabrication techniques, such as laser cutting and automated bending, allow for high precision and minimal material waste.



4. Lightweight: Many sheet metal materials, such as aluminum, offer a high strength-to-weight ratio. This property is fundamental in industries like aerospace and automotive, where reducing weight is critical for performance and fuel efficiency.



5. Recyclability: Metals used in sheet metal fabrication, such as steel and aluminum, are highly recyclable. This makes sheet metal fabrication an environmentally friendly manufacturing process, contributing to sustainability and reducing waste.

What are Some Design Tips for Sheet Metal Fabrication?

Designing for sheet metal fabrication requires careful consideration of various factors to ensure efficient manufacturing and optimal performance. Here are some design tips to keep in mind:

1. Allow for Tolerances: Account for material thickness and bending radii when designing parts. Ensure that the design includes appropriate tolerances to accommodate variations in material properties and fabrication processes.



2. Simplify Designs: Reduce complexity to streamline manufacturing. Simplified designs with fewer intricate details and features are easier and more cost-effective to produce. Avoid unnecessary bends, cuts, and joins that can increase production time and cost.



3. Use Standard Sizes: Utilize standard sheet sizes to minimize waste. Designing parts that fit within standard sheet dimensions can reduce material waste and lower production costs. It also simplifies material handling and storage.



4. Consider Bend Allowance: When designing bent parts, consider the bend allowance, which accounts for the material stretch during bending. Properly calculating bend allowance ensures accurate dimensions and fit.



5. Optimize Material Utilization: Design parts to maximize material utilization. Nesting parts efficiently on the sheet metal can minimize scrap and reduce costs. Use CAD software to plan and optimize the layout.



6. Plan for Assembly: Design parts with assembly in mind. Consider how the parts will be joined and ensure that the design allows for easy and secure assembly. Include features such as tabs, slots, and alignment holes to facilitate assembly.

Shiny silver color, stainless steel, metal stamping parts

Summary:

Understanding the intricacies of sheet metal fabrication can help industry professionals and potential buyers make informed decisions.

By leveraging the advantages and design tips of this versatile process, you can create durable, cost-effective, and precisely engineered products.

From selecting suitable materials to optimizing the design for efficient manufacturing, sheet metal fabrication offers endless possibilities for innovation and excellence in the manufacturing industry.
