In today’s fast-paced manufacturing world, efficiency, precision, and cost-effectiveness are top priorities.
Deep drawn metal stamping has emerged as a key solution, enabling industries to create durable and complex parts with high accuracy.
This process is used in the automotive and aerospace sectors, with high demand for versatile, reliable, and cost-effective components.
Deep drawn metal stamping is a technique where flat metal sheets are shaped into cylindrical or box-shaped parts by pressing them into a die cavity.
This process allows manufacturers to create hollow shapes with uniform wall thicknesses, offering high precision, repeatability, and minimal waste.
The efficiency of deep drawing makes it an indispensable method for producing high-volume components at lower costs, which is crucial for industries requiring high-quality parts at scale.
In this article, let’s dive deeper into how this process works, its benefits, and the materials involved while exploring its applications across industries.
- Table Of Contents
- 1. What Makes Deep Drawn Metal Stamping Ideal for Modern Manufacturing?
- 2. What is Deep Drawn Metal Stamping?
- 3. The Process of Deep Drawn Metal Stamping
- 4. Materials Used in Deep Drawn Metal Stamping
- 5. What Are the Benefits of Deep Drawn Metal Stamping?
- 6. Challenges in Deep Drawn Metal Stamping
- 7. Future Trends in Deep Drawn Metal Stamping
- 8. Summary
What is Deep Drawn Metal Stamping?

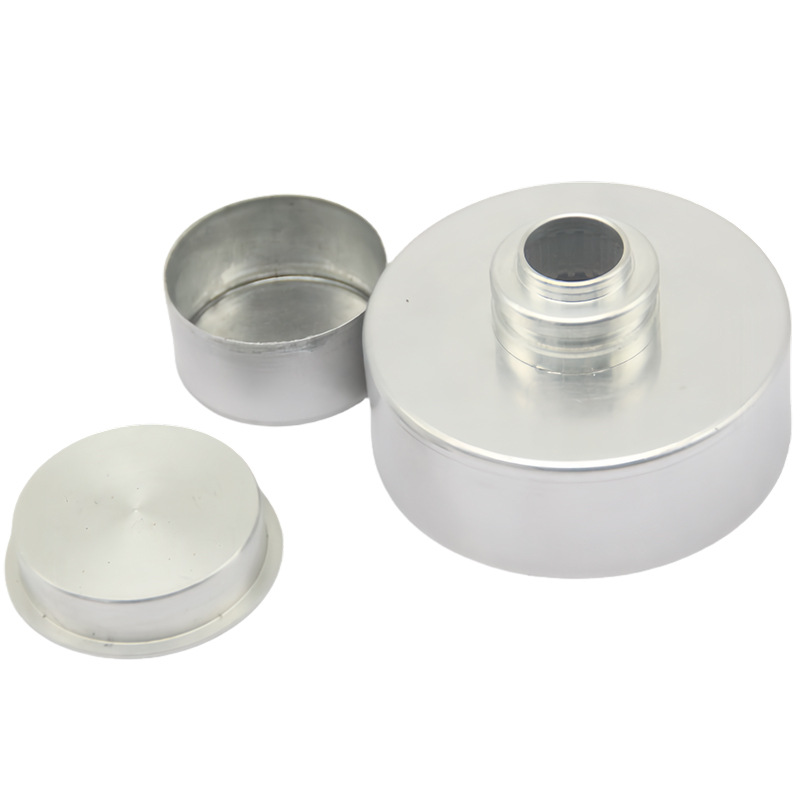

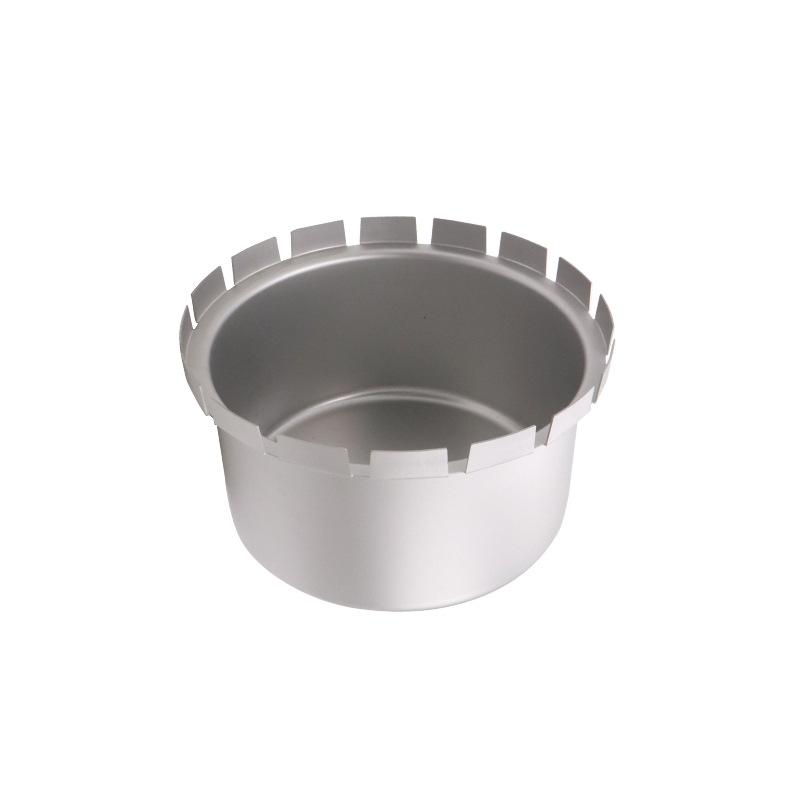

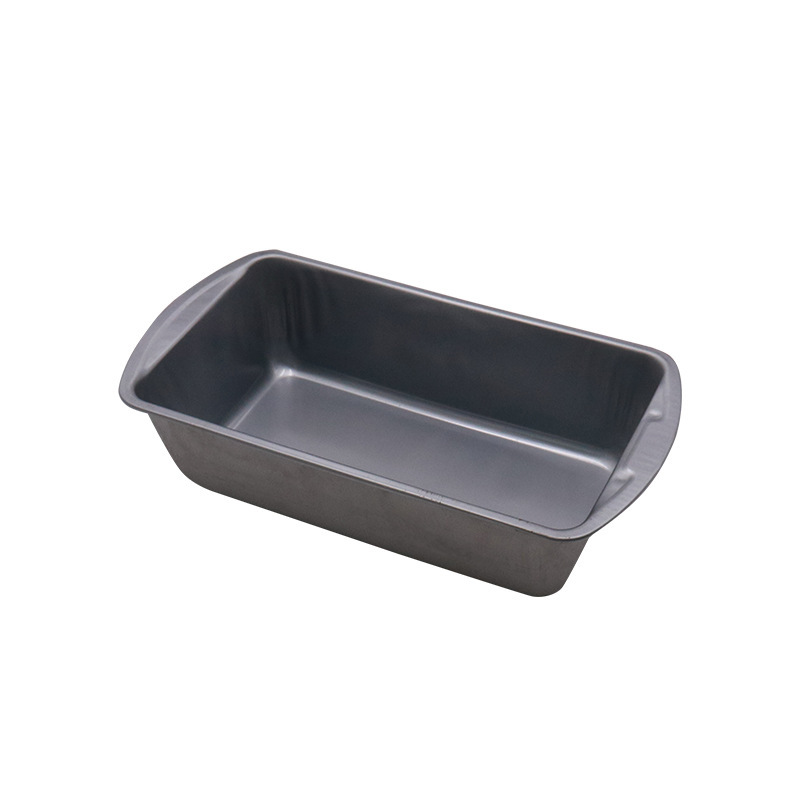

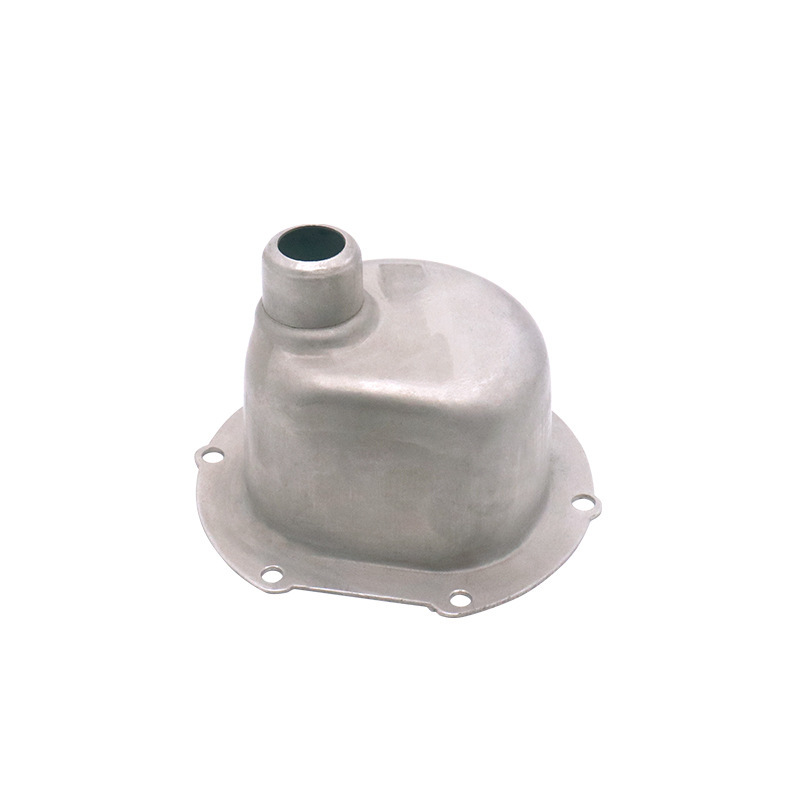

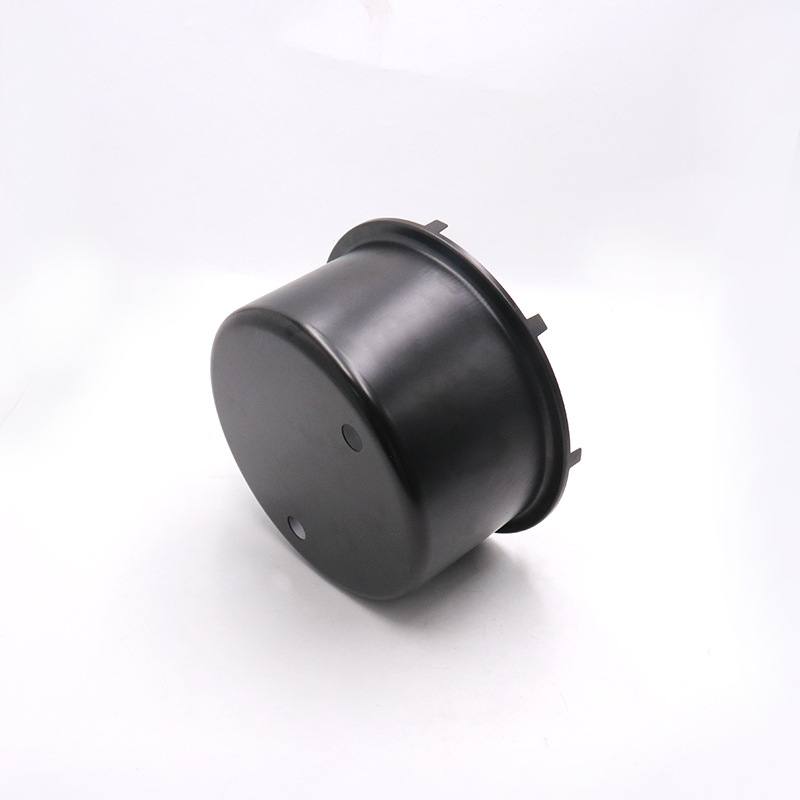

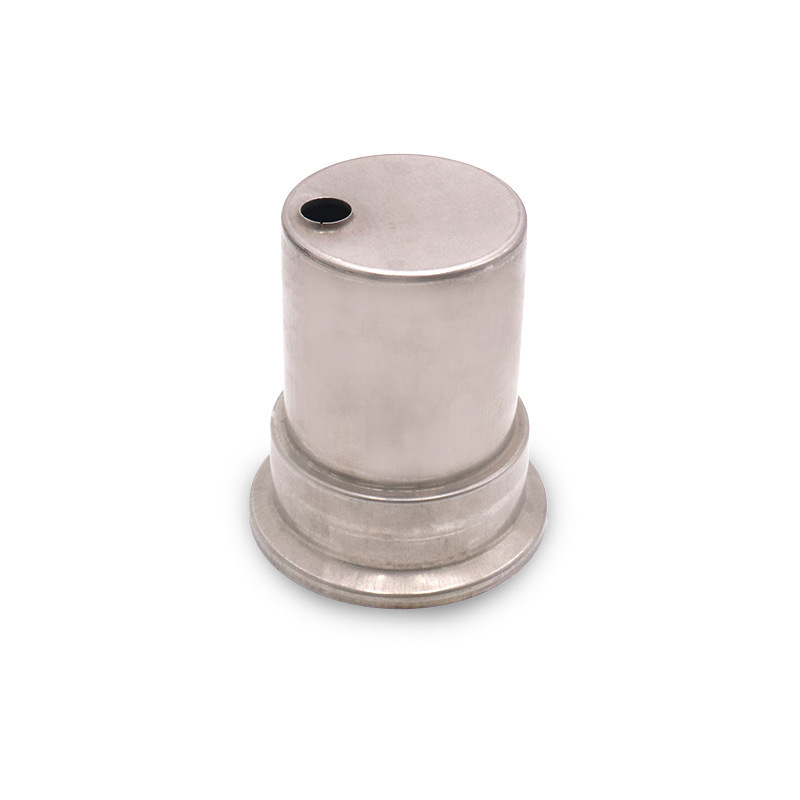

Deep drawn metal stamping involves pressing a flat metal sheet into a die to create hollow, three-dimensional parts with uniform wall thickness.
It is called “deep drawing” because the depth of the part often exceeds its diameter, enabling manufacturers to produce intricate, precise components.
Key Features:
1. Depth-to-Diameter Ratios: Allows for creating deeper than wide parts.
2. High Precision: Ensures uniformity and accuracy, even for intricate designs.
3. Material Efficiency: Minimizes waste compared to subtractive manufacturing processes.

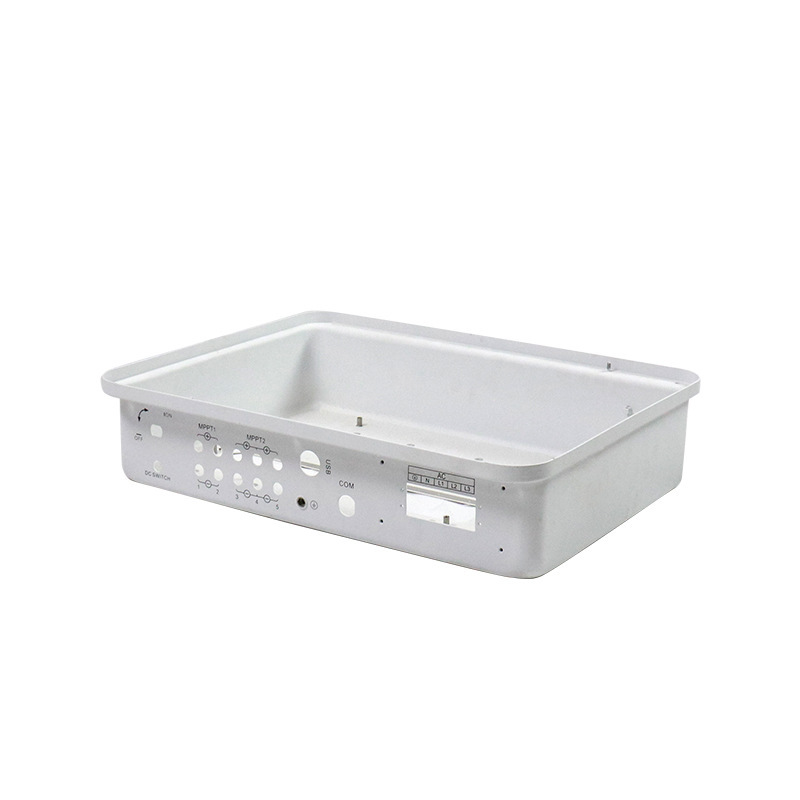

This method is widely used for producing durable parts such as fuel tanks, enclosures, and medical device housings, offering reliability and cost savings for manufacturers.
The Process of Deep Drawn Metal Stamping
The process begins with selecting appropriate die materials and preparing the metal sheet.
The process of deep drawn metal stamping involves several critical steps, each contributing to the creation of precise, high-quality parts:
1. Blanking: The process begins by cutting a flat sheet of metal, called a blank, into the desired size.
2. Positioning: The blank is carefully placed over the die cavity.
3. Drawing: A punch presses the blank into the die to form the desired cylindrical or box-like shape.
4. Redrawing (if needed): The process may be repeated for deeper parts to achieve the required depth.
5. Trimming: Excess material is trimmed to ensure a precise fit.
6. Finishing: Surface treatments such as polishing or coating may be applied for enhanced appearance and protection.
Each step ensures that the final product meets precise design and performance specifications.
Materials Used in Deep Drawn Metal Stamping
The choice of material significantly affects the deep drawing process and the final quality of the parts.
Our metal stamping services work with common materials, including:
1. Stainless Steel
• Advantages: Corrosion resistance, durability, and strength.
• Applications: Medical devices, kitchen sinks, and automotive parts.
2. Aluminum
• Advantages: Lightweight, corrosion resistance, and cost-effectiveness.
• Applications: Aerospace components, automotive panels, and consumer goods.
3. Copper and Brass
• Advantages: Excellent electrical conductivity and malleability.
• Applications: Electrical components, plumbing fixtures, and decorative items.
4. Carbon Steel
• Advantages: Strength and affordability.
• Applications: Industrial machinery and structural components.
5. Exotic Materials
Materials like titanium and nickel alloys are used for specialized applications in aerospace and medical industries due to their unique properties.
What Are the Benefits of Deep Drawn Metal Stamping?
Deep drawn metal stamping offers several advantages that make it a popular choice for industries requiring precise, high-volume parts:
1. Cost Efficiency
Deep drawing minimizes material waste, which reduces overall production costs.
Its suitability for high-volume production also offers economies of scale, making it affordable for large runs.
2. Precision and Repeatability
With advanced tooling, deep drawing provides consistent quality and tight tolerances, ensuring that each part meets strict specifications.
3. Durability
The deep drawing process strengthens materials through work hardening, ensuring that parts are durable and able to withstand wear and tear.
4. Versatility
From simple cylindrical parts to complex, multi-dimensional designs, deep drawing accommodates a wide range of shapes and sizes, offering flexibility for manufacturers.
5. Environmental Sustainability
The process generates minimal scrap, and using recyclable materials like aluminum and steel further contributes to sustainability efforts.
Challenges in Deep Drawn Metal Stamping
While deep drawing offers many advantages, it’s not without its challenges.
Common issues include:
1. Wrinkling
• Cause: Uneven force distribution during drawing.
• Solution: Use optimized blank holders and proper lubrication.
2. Tearing
• Cause: Excessive stretching of the material.
• Solution: Select materials with high ductility and ensure appropriate punch force.
3. Springback
• Cause: Elastic recovery of the material after forming.
• Solution: Employ advanced simulation tools to predict and counteract springback.
4. Surface Defects
• Cause: Friction between the blank and die.
• Solution: Use high-quality tooling and lubricants.
Future Trends in Deep Drawn Metal Stamping
As technology advances, deep drawn metal stamping continues to evolve.
Key trends include:
1. Automation: Robotics and AI are streamlining production processes, increasing efficiency and reducing human error.
2. Sustainability: An increasing focus is on eco-friendly materials and processes to reduce waste and energy consumption.
3. Material Innovation: The development of new lightweight, high-strength alloys is expanding the capabilities of deep drawn stamping for specialized applications.
4. Simulation Software: Enhanced design accuracy is achieved through digital twin technology, allowing for better part performance prediction and easier adjustments.
Conclusion
Deep drawn metal stamping offers a unique combination of precision, cost-effectiveness, and versatility, making it an ideal solution for a variety of industries, from automotive to aerospace.
By understanding the process, materials, and potential challenges, manufacturers can optimize production, reduce waste, and deliver high-quality parts efficiently.
If you’re looking to incorporate deep drawn metal stamping into your manufacturing process, partnering with an experienced provider is crucial to ensuring the best results.
With careful consideration of materials, design, and tooling, deep drawn metal stamping can help you achieve the quality and precision your business needs.
