In CNC machining, design choices can significantly impact both the process and the final product. One critical consideration is the avoidance of sharp corners.
Understanding why sharp corners pose problems can lead to better design decisions, enhancing efficiency and product quality.
Avoiding sharp corners in CNC machining is essential because they create stress concentrations, increase tool wear, and complicate material removal.
Rounded or filleted corners distribute stress more evenly, reduce tool breakage, and result in smoother, more precise parts. This improves overall machining efficiency and product durability.
Now, let’s explore in detail why avoiding sharp corners in CNC machining is so essential and how it affects various aspects of the process and product quality.
Why Should We Avoid Sharp Corners?
Sharp corners in CNC machining can lead to several significant issues. Understanding these problems helps in designing better parts that are easier to manufacture and have better performance characteristics.
Stress Concentration
Sharp corners in CNC machining can cause stress concentration, where stress is unevenly distributed. This leads to premature failure under load. Rounded corners distribute stress more evenly, enhancing durability.
Tool Wear and Breakage
Sharp corners increase tool wear and breakage risk. Abrupt direction changes at sharp corners exert excessive force on the tool, leading to faster wear, higher maintenance costs, and reduced production efficiency. Rounded corners extend tool life and improve part quality.
Material Removal Challenges
Sharp corners complicate material removal. The cutting tool must decelerate and change direction quickly, causing inaccuracies and rougher surface finishes. Rounded corners allow a consistent cutting path, improving surface quality and dimensional accuracy.
Impact on Tolerances and Surface Finish
Sharp corners make it difficult to achieve precise tolerances and smooth surface finishes. The cutting tool cannot perfectly negotiate sharp corners, leading to parts that may need additional processing. Rounded corners facilitate achieving tight tolerances and smoother finishes, reducing the need for extra finishing processes.

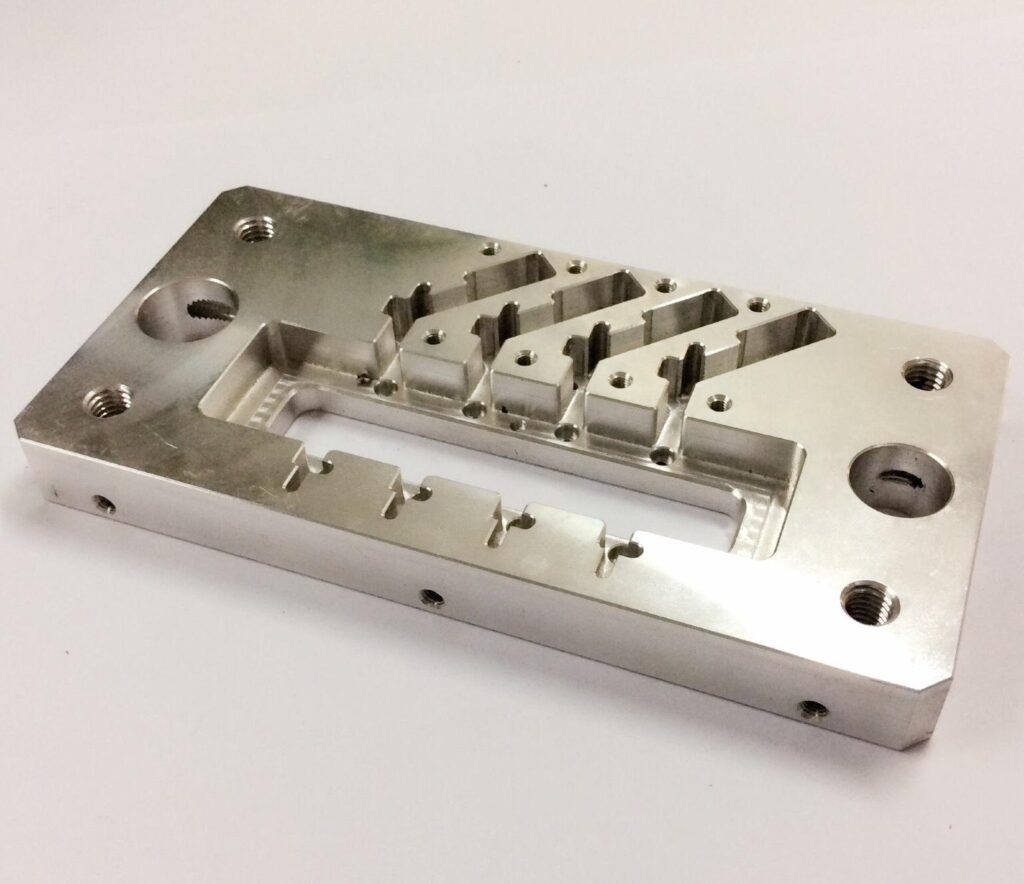

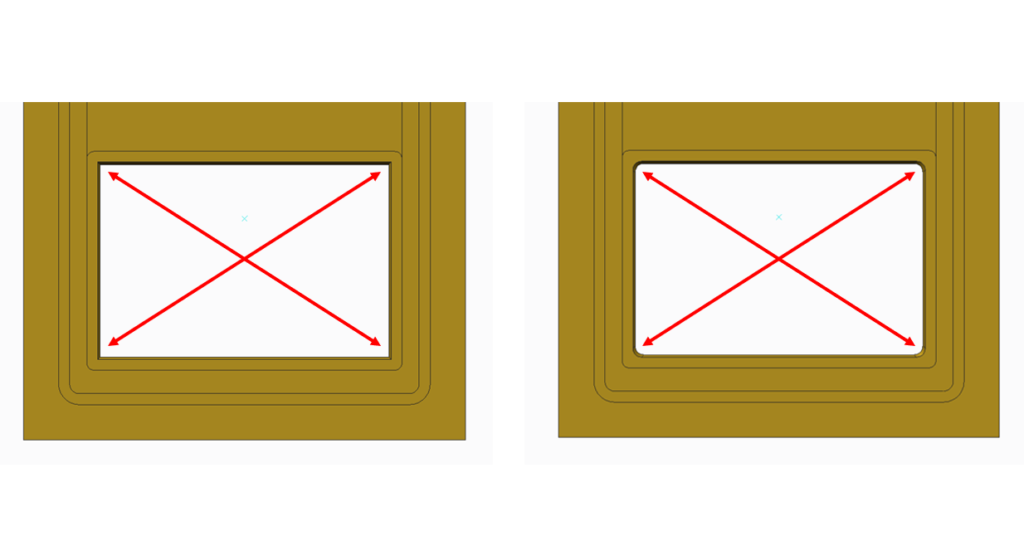

Alternatives to Sharp Corners
Instead of sharp corners, designers can use fillets or chamfers. These rounded or beveled edges not only reduce stress concentrations but also allow for smoother and more efficient material removal.
Fillets distribute stress more evenly and are easier for cutting tools to navigate, leading to better surface finishes and reduced tool wear.
Fillets are curved transitions between two surfaces, while chamfers are beveled edges. Both features can be easily machined and provide numerous benefits over sharp corners.
Fillets are particularly effective at reducing stress concentrations because they distribute stress more evenly across a larger area. Chamfers, on the other hand, are often used to eliminate sharp edges that can be hazardous or difficult to handle.
When designing parts for CNC machining, it is important to consider the radius of the fillets or the angle of the chamfers.
Too small a radius or too steep an angle can still cause stress concentrations and machining difficulties. A good rule of thumb is to use the largest radius or shallowest angle that the design allows.
Best Practices to Avoid Sharp Corners
To avoid the pitfalls associated with sharp corners, implementing a series of best practices is essential.
These practices focus on design modifications, tool selection, and advanced machining techniques to enhance the machining process and product quality.
The following guidelines provide a comprehensive approach to effectively manage and mitigate the challenges posed by sharp corners in CNC machining:
1. Use Standard Fillets and Radii:
Incorporate fillets (rounded internal corners) and radii (rounded external corners) in the design. This reduces stress concentration and improves the flow of machining processes, leading to better tool life and part quality.
2. Apply Chamfers:
Replace sharp corners with chamfers, which are beveled edges that ease the transition between surfaces. Chamfers can help reduce stress concentration and are easier to machine than sharp corners.
3. Optimize Tool Path:
Design the tool path to avoid abrupt changes in direction. Smooth transitions and continuous paths help maintain consistent cutting conditions, reducing tool wear and improving surface finish.
4. Use Appropriate Tool Geometry:
Select tools with appropriate geometries for rounding corners. End mills with corner radii or bull-nose end mills are ideal for creating smooth transitions and avoiding sharp corners.

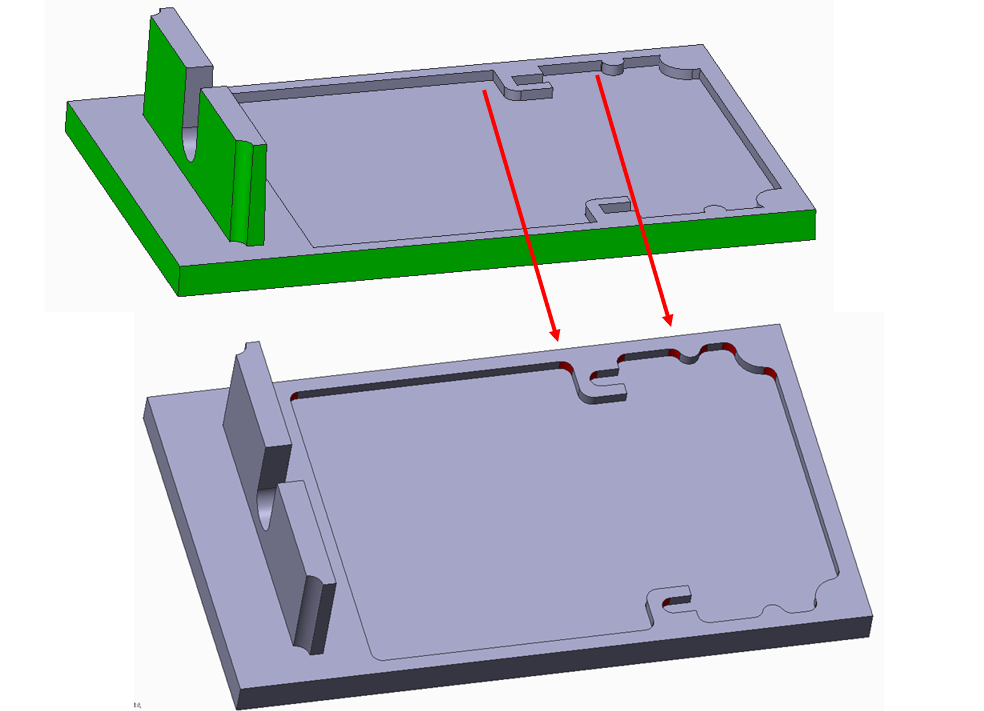

5. Modify Part Design:
Redesign the part to minimize or eliminate sharp corners. Collaborate with the design team to incorporate rounded features that are easier to machine and provide better structural integrity.
6. Implement Advanced Machining Techniques:
Use advanced CNC machining techniques such as 3D contouring or five-axis machining, which allow for more complex and smooth geometries, effectively avoiding sharp corners.
7. Perform Secondary Operations:
If sharp corners are unavoidable in the initial machining process, consider secondary operations like deburring, chamfering, or polishing to remove or smooth out sharp edges.
8. Utilize Advanced CAD/CAM Software:
Employ advanced CAD/CAM software to automatically generate tool paths that avoid sharp corners. These programs can optimize the machining process for smoother transitions and better part quality.
9. Select Proper Machining Strategies:
Choose appropriate machining strategies such as helical interpolation or trochoidal milling, which reduce the impact of sharp corners by maintaining a more constant tool engagement.
Summary:
Avoiding sharp corners in CNC machining is crucial for several reasons: it reduces stress concentrations, minimizes tool wear and breakage, simplifies material removal, and helps maintain precise tolerances and surface finishes.
By understanding the challenges associated with sharp corners and employing best practices, we can achieve better outcomes and maintain a competitive edge in the market.
